  1. Connecting a digital converter to an HD television via video/audio
  2. Connecting a digital converter to an HD television with component video/digital audio
  3. Connecting a digital converter to an HD television with HDMI
  4. Connecting a digital adapter to an older analog TV set - without a VCR
  5. Connecting a digital adapter to an older analog TV set - with a VCR
  6. Installing the IR extender included with the digital adapter

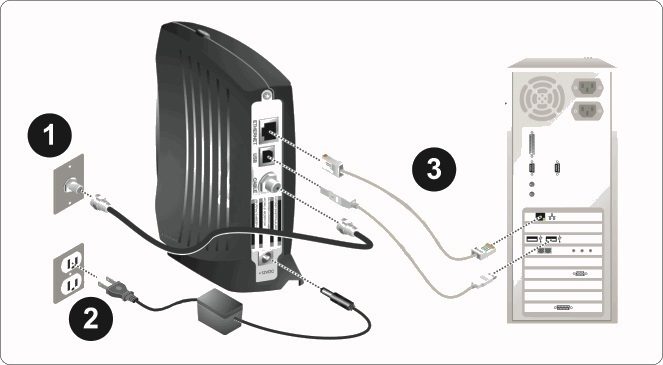

  7. Connecting a cable modem to a computer

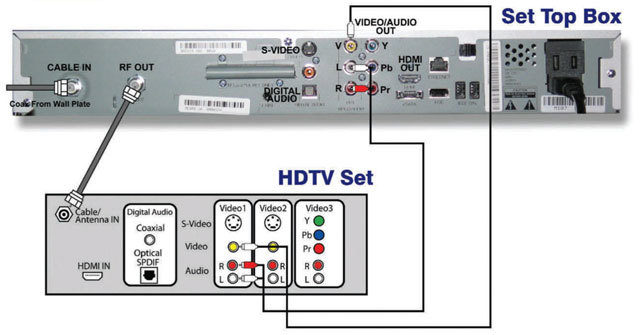

Connecting a digital converter to an HD television via video/audio

Support Diagram1

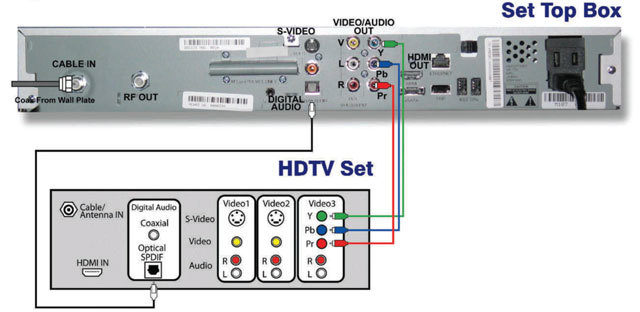

Connecting a digital converter to an HD television with component video/digital audio

Support Diagram2

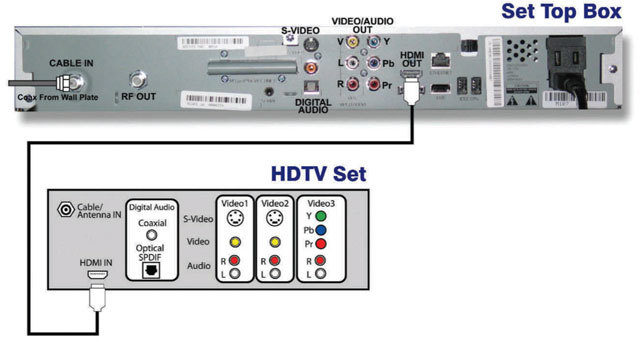

Connecting a digital converter to an HD television with HDMI

Support Diagram3

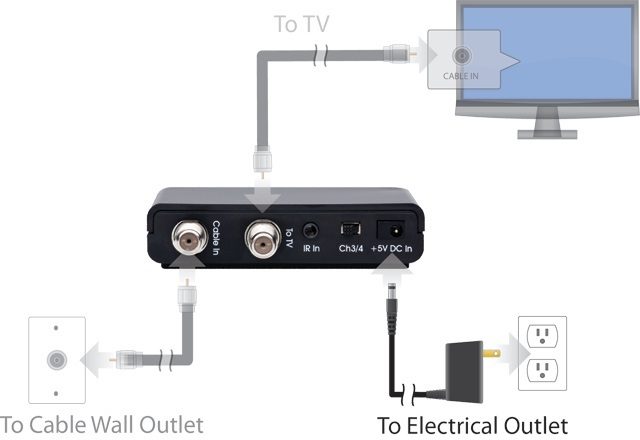

Connecting a digital adapter to an older analog TV set - without a VCR

Support Diagram4


Connecting a digital adapter to an older analog TV set - with a VCR

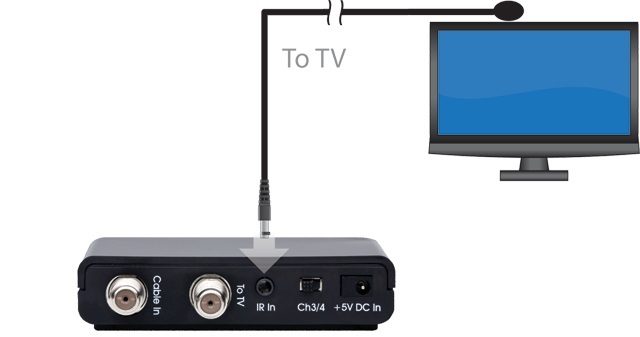

Installing the IR extender included with the digital adapter

Support Diagram6

Installing the IR extender included with the digital adapter

Support Diagram7
